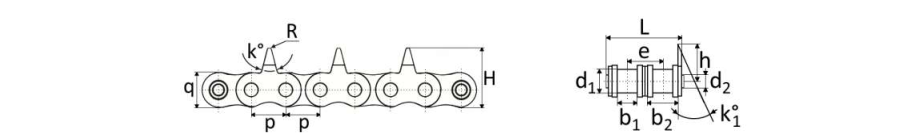

ROLLER CHAINS WITH TOOTH PLATES №3
| Chain number | (P), mm. | (bi1 min), mm. | (b2 max), mm. | (d2), mm. | (d1 max), mm. | (L max), mm. | (q max), mm. | ( e), mm. | k | (R ), mm. | (h), mm. | (H), mm. | (N min.), FB | |
| 08B-2 1Ma5.101 2T | 12,7 | 7,75 | 11,3 | 4,45 | 8,51 | 31 | 11,8 | 13,92 | 30 | 15 | 0,5 | 14,6 | 20,5 | 31 800 |
| 10B-2 1Ma5.101 2T | 15,875 | 9,65 | 13,28 | 5,08 | 10,16 | 35,8 | 14,73 | 16,59 | 36 | 15 | -- | 18,6 | 25,96 | 45 400 |
Product description
Available modifications: 08B-21Ma5.1012T 10B-21Ma5.1012T
