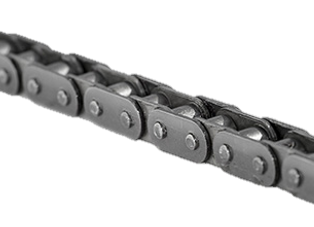

Single CHAIN with direct loop of plates according to DIN 8188

Specifications

Possible producers: KTS, Challenge, Ditton
Modification Step (p), mm Width between ext. plates (b1), mm Roller diameter (d1), mm Diameter of the roller (d2), mm Plate height (g), mm Thickness of the chain plate (s1 / s2), mm Length of the roller (l1), mm (a), mm Breaking force (FB), kN Breaking force, kN Weight (q), kg / m
K 08A-1GL 12,7 7,85 7,95 3,96 12 1,5 16,6 18,8 14,1 17,5 0,73
K10A-1GL 15,875 9,4 10,16 5,08 15,1 2 20,7 23,3 22,2 29,4 1,23
K 12A-1GL 19,05 12,57 11,91 5,94 18,0/18,2 2,4 25,9 28,3 31,8 41,5 1,81/1,83
K 16A-1GL 25,4 15,75 15,88 7,92 24 3,3 32,7 36,5 56,7 69,4 3,09
K 20A-1GL 31,75 18,9 19,05 9,53 30 4 40,4 44,7 88,5 109,2 4,56
K 24A-1GL 38,1 25,22 22,23 11,1 35,7 4,8 50,3 54,3 127 156,3 6,86
K 28A-1GL 44,45 25,22 25,4 12,7 41 5,6 54,4 59 172,4 212 8,49
K 32A-1GL 50,8 31,55 28,58 14,27 47,8 6,4 64,8 69,6 226,8 278,9 11,5

Product description

Available modifications: K08A-1GL K10A-1GL K12A-1GL K16A-1GL K20A-1GL K24A-1GL K28A-1GL K32A-1GL
