CHAIN ??WITH GEAR LINKS

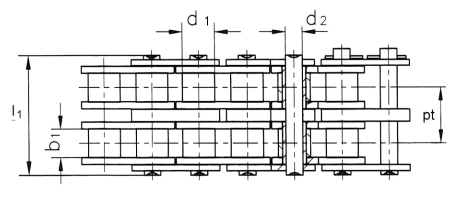

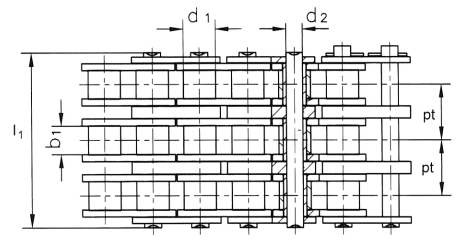

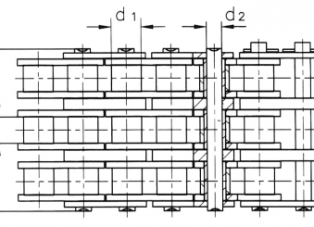

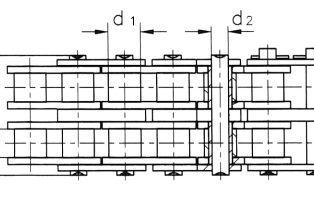

| Modification | Gost | A type of shape | Step (p), mm | Width between ext. plates (b1), mm | Roller diameter (d1), mm | Diameter of the roller (d2), mm | Length of the roller (l1), mm |

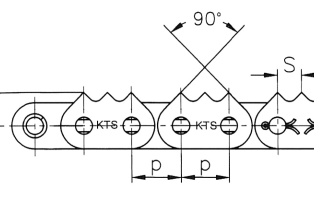

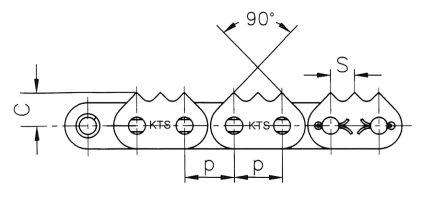

From axis
to prong
(с), mm
|
between prongs (S), mm | Transverse step, mm | Breaking force (FB), kN | Breaking force, kN | Weight (q), kg / m |
| C16AF1-3 | A | 25,4 | 15,75 | 15,88 | 7,92 | 91,7 | 17,5 | 12,2 | 29,29 | 166,8 | 198,4 | 9,36 | |
| C16AF2-3 | A | 25,4 | 15,75 | 15,88 | 7,92 | 91,7 | 17,5 | 6,35 | 29,29 | 166,8 | 198,4 | 9,58 | |
| C20AFi-2 | B | 31,75 | 18,9 | 19,05 | 9,53 | 76,4 | 21,09 | 23,11 | 35,76 | 173,5 | 202,9 | 9,23 | |
| C20AF1-3 | B | 31,75 | 18,9 | 19,05 | 9,53 | 112,2 | 21,09 | 23,11 | 35,76 | 260,2 | 309,6 | 13,4 |
Product description
Available modifications: C16AF1-3 C16AF2-3 C20AFi-2 C20AF1-3
