SIDE CHAIN ??UNDER DIN 8187

Specifications

Possible producers:	KTS, Challenge, Ditton

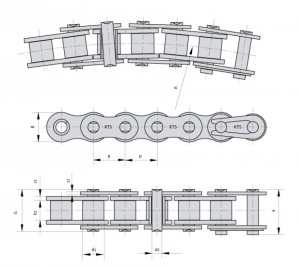

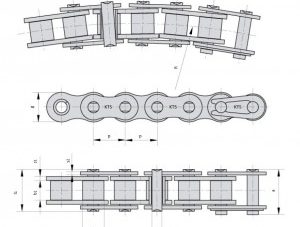

Modification	Step (p), mm	Width between ext. plates (b1), mm	Roller diameter (d1), mm	Diameter of the roller (d2), mm	Diameter of the plate (g), mm	Thickness of the chain plate (s1 / s2), mm	Length of the roller (l1), mm	(a), mm	Breaking force (FB), kN	Breaking force, kN	Weight (q), kg / m
K 08A-1SB	12,7	7,85	7,95	3,96	11,7	1,5	16,9	18,1	350	13,8	0,8
K 10A-1SB	15,875	9,4	10,16	4,37	14,9	2,03	20,7	22,7	400	20,6	1,09
K 12A-1SB	19,05	12,57	11,91	5,34	18	2,42	26,6	28,4	500	15,7	1,54
K 16A-1SB	25,4	15,75	15,88	7,19	24	3,25	34	37,3	711	40,9	2,6

Available modifications: K08A-1SB K10A-1SB K12A-1SB K16A-1SB
