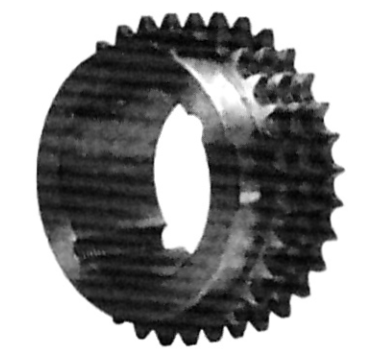

SPROCKET 06B-3 TAPER LOCK
Specifications
| ISO-Nr.: | 06В-3 |
|---|---|
| Step, mm: | 9,525 |
| Distance between chain plates, mm: | 5,72 |
| Diameter of the chain roller, mm: | 6,35 |
| Width of crown (bf1), mm: | 5,2 |
| Chamfer of tooth profile (ba), mm: | 1,0 |
| The minimum tooth radius (rx), mm: | 10,0 |
| Material: | Steel C45 |
| Number of teeth (z) | Diameter of dividing circle (d0), mm | Diameter of the tip of the teeth (dk), mm | Hub diameter (dn), mm | For bushings | Overall length (L), mm | Weight, kg |
| 17 | 51,83 | 55,3 | - | 1008 | 25,6 | 0,2 |
| 19 | 57,87 | 61,3 | - | 1008 | 25,6 | 0,23 |
| 21 | 63,91 | 68 | - | 1008 | 25,6 | 0,34 |
| 23 | 69,95 | 73,5 | - | 1210 | 25,6 | 0,38 |
| 25 | 76,02 | 80 | - | 1210 | 25,6 | 0,41 |
| 27 | 82,02 | 86 | - | 1210 | 25,6 | 0,6 |
| 30 | 91,12 | 94,7 | 79 | 1615 | 38 | 1 |
| 38 | 115,35 | 119,5 | 90 | 1615 | 38 | 1,4 |
