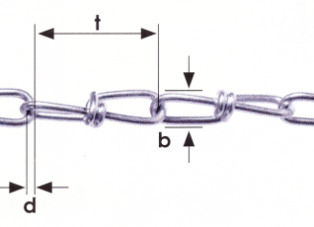

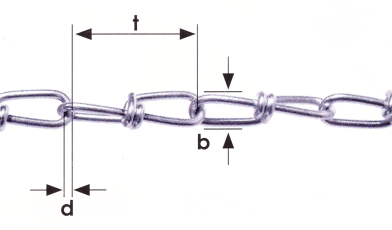

Nodal chain according to DIN 5686
| Nominal thickness (d), mm | Internal length of the link (t), mm | External link width (b), mm | Weight per 100 m., Kg | Limiting voltage, kN | № iron | № galvanization | № galvanizing |
| 1,4-K 14 | 20 | 6,5 | 4,2 | 14 | 3180014 | 3181014 | 3182014 |
| 1,6- K 16 | 23 | 7 | 5,9 | 16 | 3180016 | 3181016 | 3182016 |
| 1,8 - K 20 | 25 | 8 | 7,3 | 20 | 3180020 | 3181020 | 3182020 |
| 2,0 - K 22 | 28 | 9 | 8,7 | 25 | 3180022 | 3181022 | 3182022 |
| 2,2- K 25 | 31 | 10 | 10,8 | 35 | 3180025 | 3181025 | 3182025 |
| 2,5 -K 27 | 35 | 11 | 14,1 | 45 | 3180027 | 3181027 | 3182027 |
| 2,8 - K 30 | 39 | 12,5 | 17 | 65 | 3180030 | 3181030 | 3182030 |
| 3,1 - K 32 | 41 | 14 | 21 | 75 | 3180032 | 3181032 | 3182032 |
| 3,4 - K 35 | 44 | 15 | 26 | 95 | 3180035 | 3181035 | 3182035 |
| 3,8 - K 40 | 46 | 17 | 34 | 110 | 3180040 | 3181040 | 3182040 |
