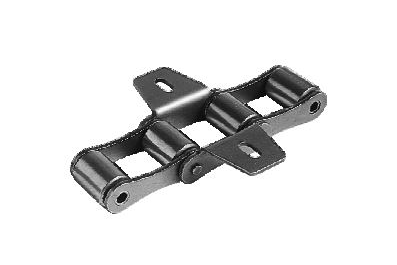

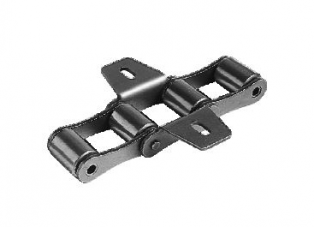

Angular ears for the chain for agricultural machinery

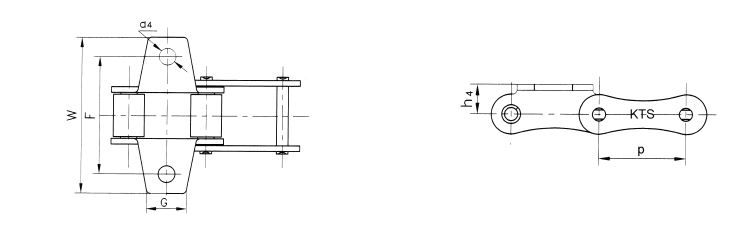

| Modification | (p), mm | (G), mm | (F), mm | (W), mm | (h4), mm | (d4), mm | (K), mm |
| S42K1 | 34,93 | 17,5 | 54 | 74,9 | 14 | 8,3 | 11,5 |
| S52K1 | 38,100 | 19,0 | 58,8 | 78,0 | 11,4 | 8,3 | 9,9 |
| S62K1 | 41,910 | 22,0 | 66,8 | 95,4 | 11,4 | 6,5 | 13,0 |
| S62F2 | 41,910 | 22 | 66,8 | 95,4 | 11,4 | 8,3 | 14,7 |
| S32K1 | 29,21 | 15,0 | 42,9 | 61,0 | 8,6 | 5,3 | 6,9 |
| S55K1 | 41,400 | 22 | 54,0 | 75 | 11,4 | 8,5 | 11,7 |
Product description
Available modifications: S42K1 S52K1 S62K1 S62F2 S32K1 S55K1
