SPECIAL ROLLER CHAIN ??WITH STEP 78 100 MM

Specifications

Possible producers: KTS, Ditton
Modification Step (p), mm Width between ext. plates (b1), mm Roller diameter (d1), mm Diameter of the roller (d2), mm Diameter of the plate (g), mm Thickness of the chain plate (s1 / s2), mm (h), mm (a), mm Breaking force (FB), kN Breaking force, kN Weight (q), kg / m
K78P 78,1 34,5 19,05 31,78 44,5 9,6 131,5 90,5 140 166,88 14,09

Product description

Possible producers: K78P

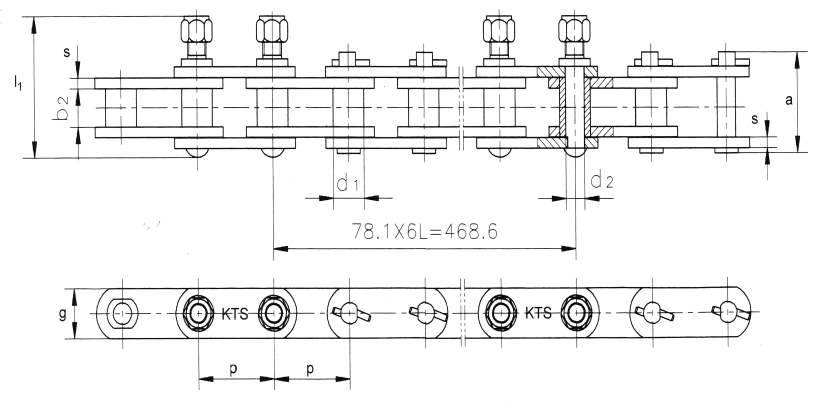

Scheme
