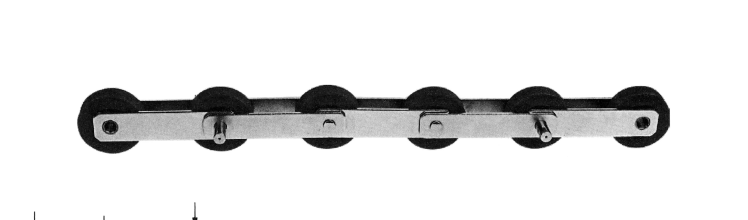

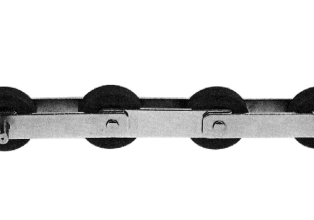

SPECIAL ROLLER CHAIN ??FOR ESCALATORS AND PASSENGER TRANSPORT TIRES

Specifications

Possible producers: KTS, Ditton
Modification Step (p), mm Width between ext. plates (b1), mm Roller diameter (d1), mm Diameter of the roller (d2), mm Plate height (g), mm Thickness of the chain plate (s), mm (h), mm (Le), mm Breaking force (FB), kN Breaking force, kN Weight (q), kg / m
ST131 131,33 27 80 24 50 5 54,5 394 180 198 9
T131 131,33 27 80 14,63 40 5 55 394 180 198 6,35
ST133 133,33 27 70 14,63 40 5 54,8 400 180 198 7,7
ST133Z 133,33 27 80 24 40,5 5 54,5 400 180 198 8,54

Product description

Available modifications: ST131 T131 ST133 ST133Z

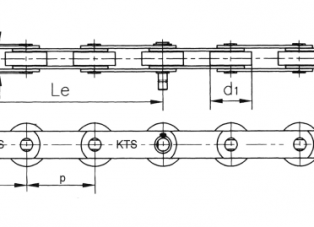

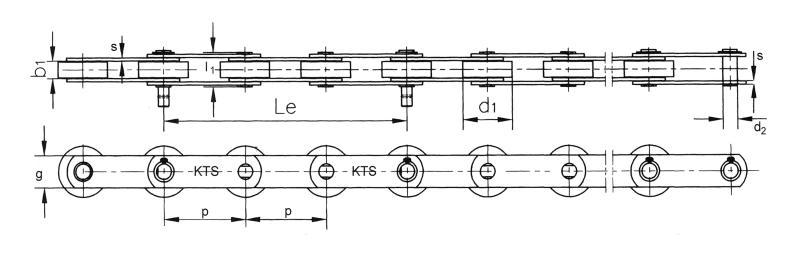

Scheme
