PR-12,7-18,2

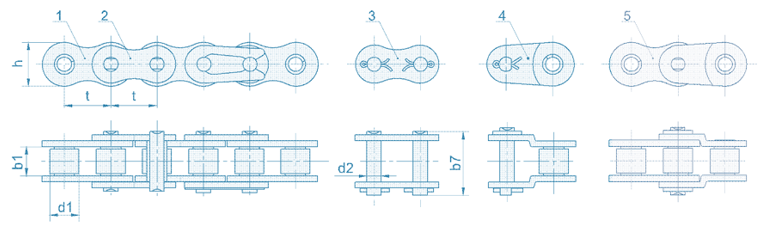

Specifications
| ISO 606: | 08 B-1 |
|---|---|
| Step (t), mm: | 12,7 |
| Width between ext. plates (b1), mm: | 7,75 |
| Diameter of the roller (d2), mm.: | 4,45 |
| Roller diameter (d1), mm.: | 8,51 |
| Width of the ext. plate (h), mm: | 11,8 |
| Length of the roller (b7), mm: | 21 |
| Destructive load, kN, not less than: | 18,2 |
| Weight, kg/1m: | 0,75 |
