CHAIN ??BUSH ACCORDING TO DIN 8164

Specifications

Possible producers:	KTS, Ditton

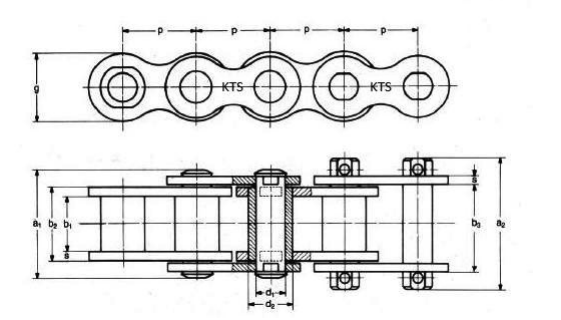

Modification	Step (p), mm	Diameter of the roller (d2), mm	Width between ext. plates (b1), mm	Roller diameter (d1), mm	(a1), mm	(a2), mm	Plate height (g), mm	Thickness of the chain plate (s1 / s2), mm	Breaking force (FB), kN	Weight (q), kg / m
BK-15	15	9	14	6	26	30	14	2	12,5	1,25
BK-20	20	12	16	8	33	39	19	3	25	2,1
BK-25	25	15	18	10	37	44	24	3	31,5	2,6
BK-30	30	17	20	11	43	50	28	4	40	4
BK-35	35	18	22	12	45	55	30	4	50	4,3
BK-40	40	20	25	14	53	62	35	5	63	5,5
BK-45	45	22	30	16	62	71	40	6	80	7,6
BK-50	50	26	35	18	67	80	44	6	100	9
BK-55	55	30	45	20	86	100	49	8	125	13,6
BK-60	60	32	50	22	92	105	55	8	160	14,9
BK-65	65	36	55	26	98	114	61	8	200	18,9
BK-70	70	42	65	30	117	131	67	10	250	24,7

Available modifications: BK-15 BK-20 BK-25 BK-30 BK-35 BK-40 BK-45 BK-50 BK-55 BK-60 BK-65 BK-70
