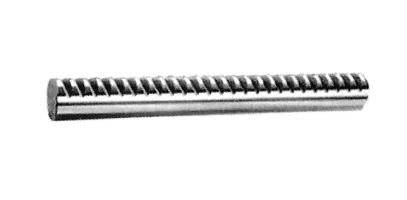

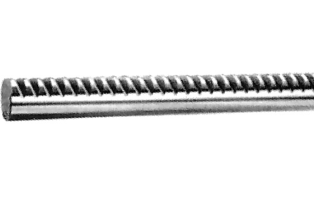

CYLINDRICAL GEAR
| Module: | Length (L), mm | (h0), mm | Height (ha), mm | Width of tooth (b), mm | Weight, kg |
| Modul 1,0 | 500 | 9 | 10 | 6 | 0,28 |
| 1000 | 9 | 10 | 6 | 0,56 | |
| 2000 | 9 | 10 | 6 | 1,12 | |
| Modul 1,5 | 500 | 13,5 | 15 | 9 | 0,64 |
| 1000 | 13,5 | 15 | 9 | 1,28 | |
| 2000 | 13,5 | 15 | 9 | 2,56 | |
| Modul 2,0 | 500 | 18 | 20 | 12 | 1,14 |
| 1000 | 18 | 20 | 12 | 2,28 | |
| 2000 | 18 | 20 | 12 | 4,56 | |
| Modul 2,5 | 500 | 22,5 | 25 | 15 | 1,78 |
| 1000 | 22,5 | 25 | 15 | 3,56 | |
| 2000 | 22,5 | 25 | 15 | 7,12 | |
| Modul 3,0 | 500 | 27 | 30 | 18 | 2,59 |
| 1000 | 27 | 30 | 18 | 5,14 | |
| 2000 | 27 | 30 | 18 | 10,28 | |
| Modul 4,0 | 500 | 36 | 40 | 24 | 4,56 |
| 1000 | 36 | 40 | 24 | 9,12 | |
| 2000 | 36 | 40 | 24 | 18,24 | |
| Modul 5,0 | 500 | 45 | 50 | 30 | 7,1 |
| 1000 | 45 | 50 | 30 | 14,2 | |
| 2000 | 45 | 50 | 30 | 28,4 |
