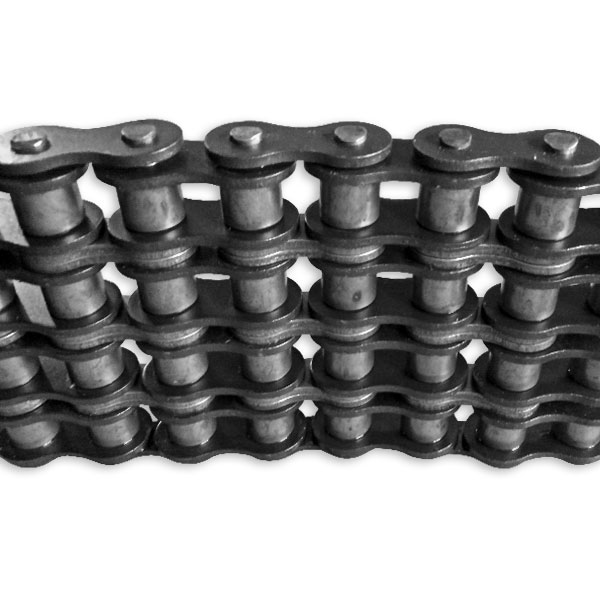

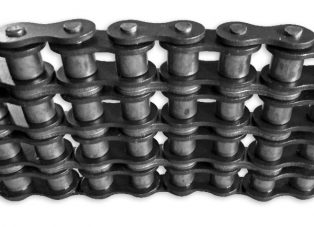

4PR-19,05-155

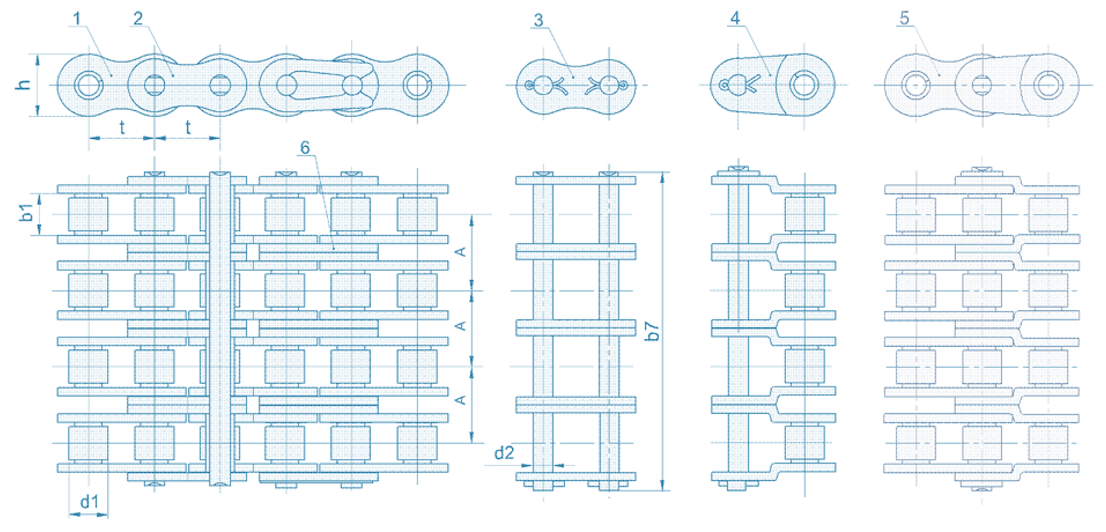

Specifications
| ISO 606: | - |
|---|---|
| Step (t), mm: | 19,05 |
| Width between ext. plates (b1), mm: | 12,70 |
| Diameter of the roller (d2), mm.: | 5,94 |
| Roller diameter (d1), mm.: | 11,91 |
| Transverse step (A), mm: | 25,50 |
| Width of the ext. plate (h), mm: | 18,08 |
| Length of the roller (b7), mm: | 17,75 |
| Destructive load, kN, not less than: | 155 |
| Weight, kg/1m: | 6,80 |
