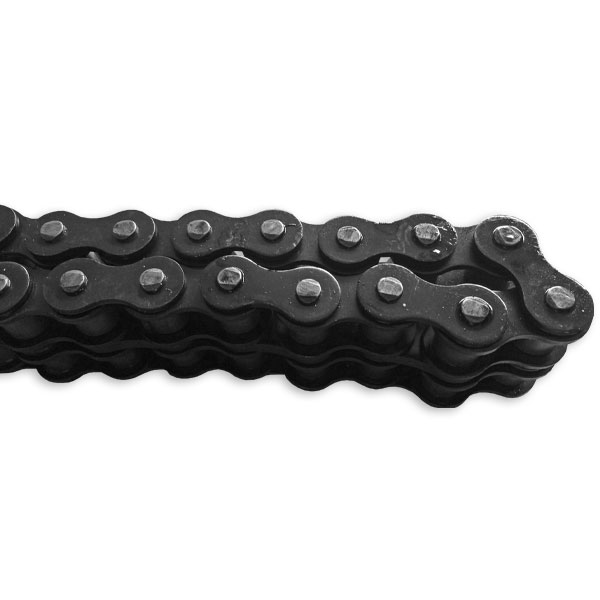

2PR-15,875-45,4

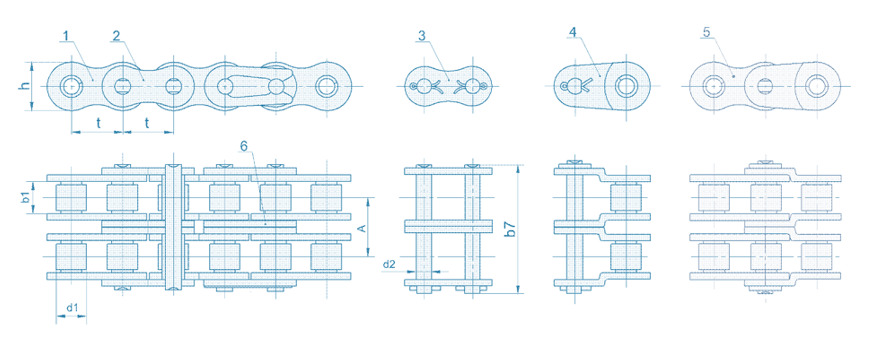

Specifications
| ISO 606: | 10 В-2 |
|---|---|
| Step (t), mm: | 15,875 |
| Width between ext. plates (b1), mm: | 9,65 |
| Diameter of the roller (d2), mm.: | 5,08 |
| Roller diameter (d1), mm.: | 10,16 |
| Transverse step (A), mm: | 16,59 |
| Width of the ext. plate (h), mm: | 14,80 |
| Length of the roller (b7), mm: | 41 |
| Destructive load, kN, not less than: | 45,4 |
| Weight, kg/1m: | 1,9 |
